Product Details
Application

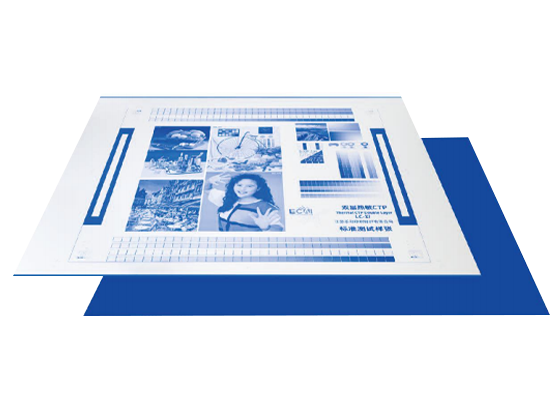

Lecai Thermal CTP plates are use for high-end commercial color printingand newspaper printing.The unique manufacturing technology and goodquality raw materials supply in high photosensitive,good halftone dotreproduction and good stability.
Characteristic
1.High quality aluminum,composite grain and long run-length.
2.Capable of bright room operation.
3.High resolution and precise halftone dot reproduction.
4.Good development tolerance and convenient operation.
General Information | |
Plate Type | Thermal CTP Plate(Double Layer) |
Application | High grade commercial and newspaper printing |
Substrate | Electro chemically Grained and Cathodic lithographic Alumnum |
Aluminum alloy | Standard 1050 and 1060 Alloy |
Coating | Two-layer system,IR sensitive,positive acting |
Gauge | 0.15,0.20,0.25,0.30,0.40(mm) |
Maximum short grain width | 1380mm |
Length of Run | Ordinary Ink:100,000 to 150,000 impressions UV Ink:10,000 to 30,000 impression |
Exposing | |
Plate setters |
Kodak: Trendsetter/Lotem/Magnus |
Exposure energy | 110-130 mJ/cm² |
Spectral Sensitivity | 800-850 nm -Peaks |
Resolution | 1-99%at 200 LPI |
FM capability | 20 micron stochastic |
Image color | Blue Green to Pale Green |
Developing | |
Processor | All the kind Brands. |
Developer | Kodak Gold Star or our Lecai DP-developer |
Processing temperature | 23℃+/-2℃ |
Developing time | 25+/-5 sec |
DynamicSupplement | 80-120 ml/m² |
Storage and handling | |
Safelight | Daylight handling |
Shelf Life | 18 months under recommended storage conditions |
Storage and handling | stored in a cool and dry environment,away from excessive cold, heat and humidity. |
