CTP Plate: Innovation and Future of Printing Technology

I. Introduction

In the modern printing industry, efficiency, quality, and environmental protection are eternal pursuits. Computer-to-Plate (CTP) technology is a key innovation born to meet these demands. CTP plates, as the core medium of CTP technology, have completely transformed the traditional plate-making process, directly converting digital files into printing plates, thereby realizing the digitalization and automation of printing production.

Compared to traditional Computer-to-Film (CTF) plate-making technology, CTP technology eliminates multiple intermediate steps such as film output, imposition, and plate exposure. Traditional plate-making usually requires outputting digital files onto film first, and then exposing the image onto a PS plate (pre-coated photosensitive plate) through the film. CTP technology, however, directly images digital information onto special CTP plates using lasers. This fundamental change has led to significant improvements in efficiency and quality.

The importance of CTP technology in the printing industry is self-evident. It has not only greatly promoted the digitalization and automation of printing production, reducing human error, but also significantly improved printing efficiency and the quality of the final product. From the nascent stages of CTP technology in the early 1990s to its widespread application today in commercial printing, newspaper printing, packaging printing, and other fields, the development of CTP plates is a microcosm of continuous innovation in printing technology towards intelligence.

II. Working Principle of CTP Plates

The core of CTP plate-making technology lies in its "Computer-to-Plate" concept, meaning digital files are imaged directly onto the printing plate without the need for an intermediate film. This process primarily relies on high-precision laser imaging systems. When digitized graphic information is transmitted to the CTP device, a laser beam precisely scans and exposes the photosensitive layer of the CTP plate according to this information.

The principle of laser imaging varies depending on the plate type, but generally involves the action of laser energy on the photosensitive layer of the plate. For example, in thermal CTP plates, the thermal effect of the laser causes physical or chemical changes in the photosensitive coating; in violet CTP plates, specific wavelengths of violet laser excite photosensitive materials to react. After exposure, the plate usually undergoes subsequent processing such as developing, fixing, and gumming (except for processless plates) to form a printable image with hydrophilic and oleophilic areas, which is then used on the printing press.

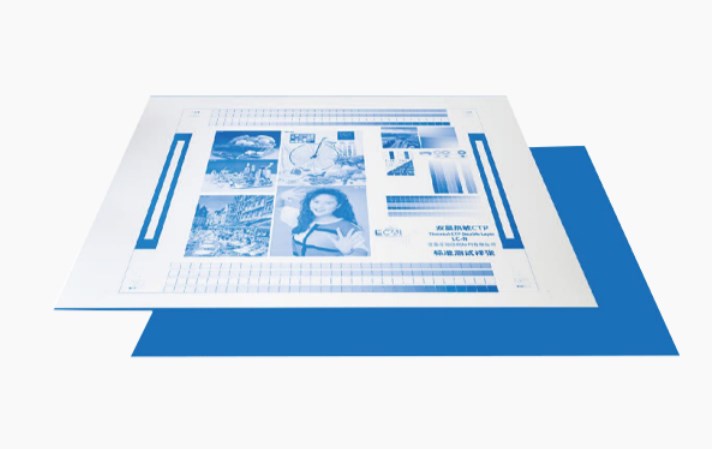

The structure of a CTP plate typically consists of a photosensitive layer and a support layer. The support layer is usually aluminum-based, providing stability and strength to the plate. The photosensitive layer is the core of the CTP plate, sensitive to specific wavelengths of laser or heat. The imaging characteristics of different plate types (such as thermal, violet, UV-CTP) are mainly reflected in the chemical composition of their photosensitive layers and their response to laser energy, which determines their respective plate-making speed, imaging accuracy, and operating environment requirements.

III. Classification and Characteristics of CTP Plates

CTP plates can be mainly divided into the following categories based on their photosensitive principles and imaging methods:

Thermal CTP Plate

Thermal CTP plates are currently the most widely used type of CTP plate. Their principle is to use the thermal effect of an infrared laser (usually 830nm) to cause physical or chemical changes in the plate's photosensitive coating, thereby forming a latent image.

• Characteristics: Thermal plates offer high resolution, good dot reproduction, high plate-making stability, and strong print durability. Since they are not sensitive to visible light, they can be operated in normal white light environments, greatly simplifying the requirements for the plate-making workshop.
• Classification: According to the imaging mechanism, thermal plates can be further divided into ablative type (laser ablates the coating), thermal cross-linking type (laser initiates cross-linking and curing of the coating), and thermal melting type (laser melts the coating to expose hydrophilic groups), among others.

Violet CTP Plate

Violet CTP plates use a 405nm violet laser for exposure.

• Principle: Violet laser energy excites photopolymers in the plate's photosensitive coating to undergo a polymerization reaction, forming the image.
• Characteristics: Violet plates generally have faster plate-making speeds than thermal plates, and their equipment costs are relatively lower, which gives them an advantage in areas requiring high speed, such as newspaper printing. However, violet plates have certain requirements for ambient light and need to be operated in a yellow light environment.

UV-CTP Plate

UV-CTP plates use ultraviolet (UV) light for exposure.

• Principle: Similar to traditional PS plates, UV-CTP plates expose the photosensitive layer to UV light, causing a photochemical reaction.
• Characteristics: The biggest advantage of UV-CTP plates is their strong compatibility; they can be processed using traditional PS plate developing equipment, reducing the initial investment for printing companies upgrading to CTP. They offer excellent cost-effectiveness and are an ideal choice for traditional PS plate users transitioning to CTP.

Processless CTP Plate

Processless CTP plates represent a significant direction in CTP technology development, completely overturning traditional wet processing workflows.

• Characteristics: These plates do not require wet processing steps such as developing, fixing, or rinsing after exposure, and can be directly mounted onto the printing press. This not only significantly saves water, chemical agents, and energy consumption, and reduces waste liquid discharge, but also saves space for developing equipment and maintenance costs, greatly enhancing environmental benefits and production efficiency.
• Working Principle and Advantages: Processless plates typically rely on the action of fountain solution or ink on the printing press after laser exposure to remove the coating in non-image areas, thereby forming a printable image. Their advantages lie in being environmentally friendly, time-saving, and labor-saving, making them a mainstream trend in the future development of CTP plates.

IV. Advantages of CTP Plates

The widespread adoption of CTP plates is due to the numerous significant advantages they offer:

Improved Print Quality

• High Dot Reproduction and Clarity: CTP technology eliminates dot loss, distortion, and dust interference that film as an intermediate medium might introduce. It achieves direct high-precision imaging from digital files to plates, thus ensuring accurate dot reproduction and image clarity in printed materials.
• Reduced Dot Gain and Distortion: In traditional plate-making, film exposure, plate exposure, and other steps can lead to dot gain, loss, or distortion. CTP direct imaging largely avoids these issues, ensuring faithful reproduction of colors and details in printed matter.

Increased Production Efficiency

• Elimination of Film Output, Imposition, and Plate Exposure Steps: The CTP workflow greatly simplifies the prepress plate-making stage, eliminating time-consuming and error-prone steps such as film production, manual imposition, and traditional plate exposure.
• Shorter Plate-making Time and Faster Production Cycle: Due to simplified processes and increased automation, plate-making time is significantly reduced, allowing printing tasks to enter production faster, thereby accelerating the entire printing production cycle and improving delivery speed.

Reduced Production Costs

• Reduced Consumables like Film and Chemicals: CTP technology eliminates the need for expensive film and significantly reduces the consumption of chemicals like developer and fixer (especially for processless plates).
• Lower Labor Costs: Increased automation means less reliance on manual operations, thereby reducing labor costs in the plate-making process.

Environmental Benefits

• Reduced Waste Liquid Discharge, Especially for Processless Plates: Traditional plate-making processes generate a large amount of waste liquid containing heavy metals and chemical substances, causing environmental pollution. CTP technology, particularly processless plates, significantly reduces or eliminates waste liquid discharge, aligning with today's pursuit of green and environmentally friendly printing.

Digitalization and Automation

• Seamless Integration with Prepress Workflow: CTP technology is a key component of the digital prepress workflow, enabling seamless integration with design, layout, and preflighting stages, forming an efficient, automated production chain.
• Convenient Data Management and Repeat Production: All graphic information is stored digitally, facilitating data management, storage, and retrieval. When repeat printing is required, digital files can be directly recalled for plate-making, ensuring consistency in printed materials.

V. Challenges and Limitations of CTP Plates

Despite the numerous advantages brought by CTP plates, they also face some challenges and limitations in practical applications:

VI. Application Areas of CTP Plates

CTP plates are widely used in various segments of the printing industry due to their high efficiency and quality characteristics:

• Commercial Printing: Brochures, posters, magazines, manuals, and various other commercial printed materials, which require high print quality and efficiency, make CTP plates the preferred choice.
• Newspaper Printing: Newspaper printing has extremely high speed requirements. CTP technology enables rapid plate-making, meeting the immediate publication needs of newspapers. Violet CTP plates are widely used in this field.
• Packaging Printing: Various paper boxes, cartons, flexible packaging, etc. CTP plates provide fine printing results, meeting the requirements for brand image and product information presentation on packaging.
• Book and Periodical Printing: Textbooks, novels, periodicals, etc. CTP plates ensure the clarity of text and images, enhancing the reading experience.
• Other Special Printing: Such as label printing,票据 printing (bill printing), etc., CTP plates also play an important role.

VII. Future Development Trends of CTP Plates

CTP plate technology continues to evolve, and future development will focus on the following aspects:

• Popularization and Technological Advancement of Processless Plates: With increasing environmental awareness and breakthroughs in technical bottlenecks, processless CTP plates will become the market mainstream. Future processless plates will have longer print durability, more stable performance, and broader applicability.
• Environmental and Green Development: In addition to processless technology, plate manufacturers will continue to research and develop more environmentally friendly materials and production processes to reduce environmental impact and achieve greening throughout the entire printing lifecycle.
• Increased Intelligence and Automation: CTP equipment will become more intelligent, achieving deeper integration with prepress software and printing presses, forming highly automated production lines that reduce manual intervention and improve production efficiency and stability.
• Integration and Complementarity with Digital Printing Technology: Although CTP is a plate-making technology for traditional offset printing, with the rise of digital printing, CTP plates will also explore integration points with digital printing technology, such as their application in hybrid printing workflows, or providing more flexible solutions for short-run and personalized printing.
• Application of New Materials and Technologies: The application of cutting-edge technologies such as nanomaterials and new polymers will bring higher photosensitivity, better print durability, and lower costs to CTP plates.

VIII. Conclusion

CTP plates, as the core of Computer-to-Plate technology, are undoubtedly a milestone in the history of the printing industry. With their excellent efficiency, quality, cost, and environmental advantages, they have completely revolutionized the traditional plate-making process, driving the printing industry towards digitalization, automation, and greening.

Looking ahead, with the continuous advancement of processless technology, environmentally friendly materials, and intelligence, CTP plates will continue to play a central role in the printing industry. They are not only key to achieving high-quality and high-efficiency printing but also an important support for the sustainable development of the printing industry. The continuous innovation of CTP plates will ensure that printing technology maintains its vitality and competitiveness in the digital age, contributing to the prosperous development of the global printing industry.
